Fully Threaded Stud
Product Details Product Name: Fully Threaded Stud/Threaded RodProduct OverviewA fully threaded stud is a rod-shaped fastener with threads throughout. It can be used in conjunction with nuts at both ends and is a core connecting component in pipe flange connections, equipment assembly, and stee...
Description
Marker
Product Details
Product Name: Fully Threaded Stud/Threaded Rod
Product Overview
A fully threaded stud is a rod-shaped fastener with threads throughout. It can be used in conjunction with nuts at both ends and is a core connecting component in pipe flange connections, equipment assembly, and steel structure projects. Its continuous thread design offers unlimited adjustment possibilities, making it particularly suitable for industrial scenarios that require extensive length adjustments or frequent disassembly.
Core advantage：
1. Stepless length adjustment
The thread covers 100% of the rod body length
Nuts can be installed at any position
The adjustment accuracy reaches 0.5mm
2. Multi-functional application design
The end can be processed with chamfering or flat beveling
- Supports customization of the middle smooth rod section
Optional double-ended reducer thread
Industry solutions:
1. Petrochemical
The flange of the reaction vessel is connected in a columnar shape
Adjustment of the pipe support system
2. Electric energy
Transformer installation and positioning
Pre-tightening of wind power tower cylinder bolts
3. Machinery Manufacturing
Adjustment of the press crossbeam
Mold height fine-tuning device
4. Construction Engineering
Seismic joints of steel structures
- Connection of the curtain wall keel
Installation points:
1. Torque control (reference value)
-M10 8.8 grade: 45Nm
-M20 10.9 grade: 400Nm
2. Sealing treatment
Molybdenum disulfide lubricant is used in high-temperature working conditions
Use anti-loosening glue in corrosive environments
3. Protective suggestions
- Hot-dip galvanizing treatment is required for outdoor use
-316 stainless steel is selected for the food industry
Technical Parameters
| Product Name: | Fully Threaded Stud |
| Diameter: | M3-M30 |
| Length: | 10mm-1000mm |
| Colour: | Carbon steel color/black |
| Material: | Carbon steel |
| Surface treatment: | Galvanizing |
| The above are the inventory sizes. If you need non-standard customization (special dimensions, materials or surface treatments), please contact us and we will provide you with a personalized solution. | |
contact us
Related Popular Products
Color expansion bolts with holes
Product Details Expansion bolts with holes are a special type of expansion screw. The...
High-strength hexagonal head nut
Product Details High-strength hexagonal nuts are usually used in conjunction with hig...
Yellow pipe plastic expansion
Product Details Product Name: Yellow pipe plastic expansion Product Overview Plastic ...
White flange Bolt
Product Details Product Name: Flange Bolt/Flange Screw Product Overview Flange bolts ...
Black stud Bolt
Product Details Product Name: Double End Stud/Stud Bolt Product Overview Double-ended...
Self-cutting Screw
Product Details Product name：Self-Cutting Screws A self-cutting screw is a type of s...
Nylon Self-Locking Nut
Product Details Product Name: Nylon Self-Locking Nut Product Overview Anti-loosening ...
High strength hexagon head bolt
Product Details High-strength hexagonal bolts are a type of fastener widely used in c...

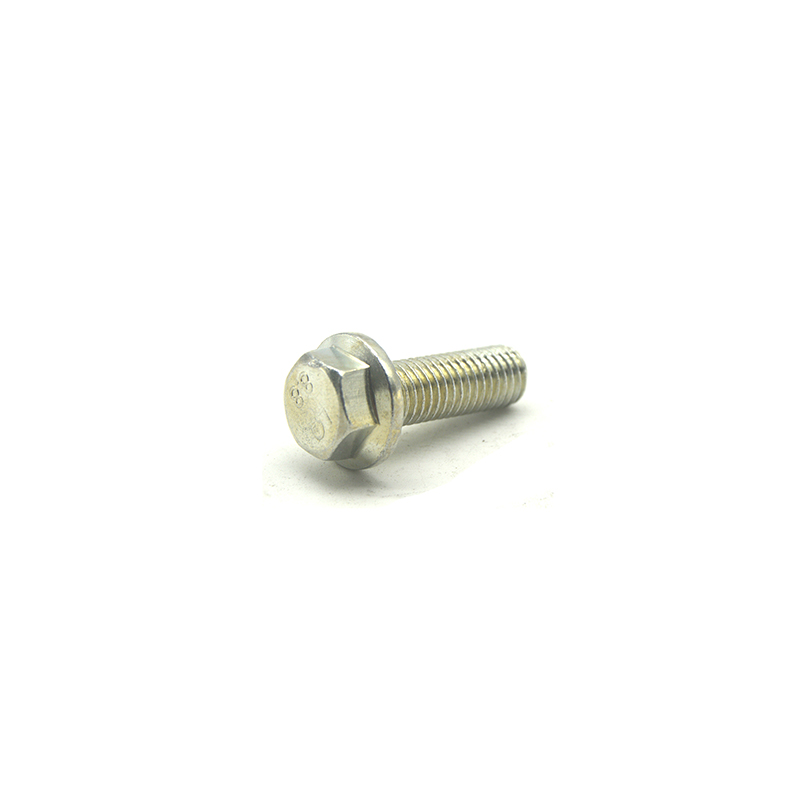

Flange Nut
Product Details Product Name: Flange Nut Product Overview A flange nut is a special t...
Window Frame Expansion Anchor
Product Details Product Name: Window Frame Expansion Anchor Product Overview The wind...
Color flange Bolt
Product Details Product Name: Flange Bolt/Flange Screw Product Overview Flange bolts ...
White stud Bolt
Product Details Product Name: Double End Stud/Stud Bolt Product Overview Double-ended...

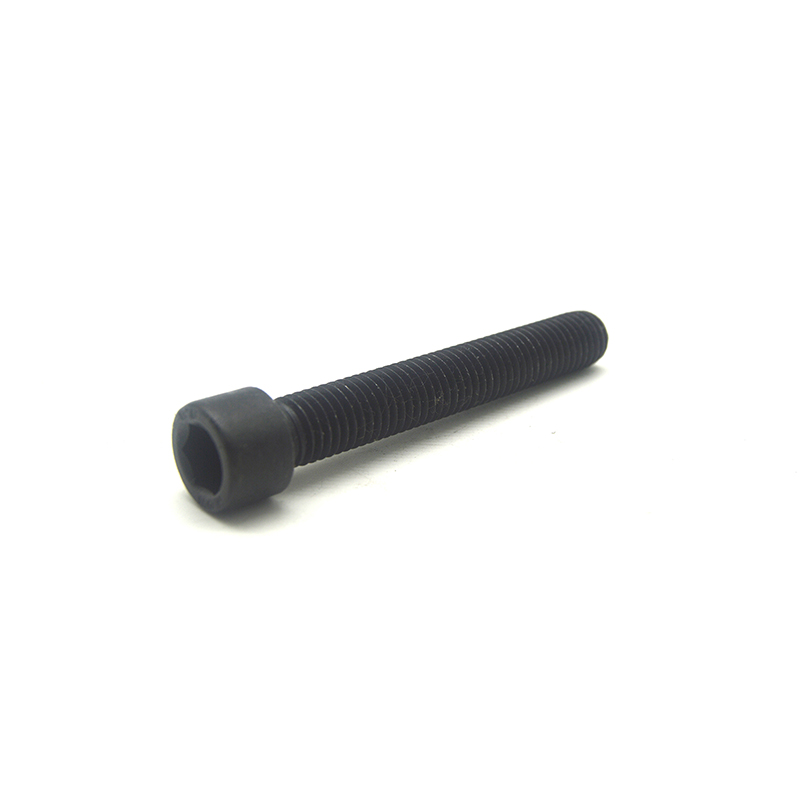

Hex Socket Head Cap Screw
